GE PDM NiBP Assembly 2031069-043 with Manifold & Hose

GE Patient Data Module PDM NiBP Assembly with Manifold & Hose 2031069-043

► Brief Introduction

Module PDM NiBP Assembly with Manifold & Hose 2031069-043
GE Healthcare designs and manufactures an integrated non-invasive blood pressure measurement kit for its Patient Data Modules (PDM). It is not a simple hose, but a sophisticated assembly consisting of a manifold, hose, electrical connectors, and internal pneumatic circuitry.

It is responsible for collecting and processing physiological data from various sensors. The NiBP assembly serves as the "bridge" and "control center" between the PDM and the patient's cuff for blood pressure measurement.

►Specification

►Main Functions of This Assembly

Inflation Phase: A pump within the PDM pumps air into the blood pressure cuff through the assembly's internal air circuitry, causing it to inflate and compress the patient's artery.

Pressure Monitoring: A precision pressure sensor located within the manifold monitors pressure changes within the cuff in real time.

Deflation and Measurement: The PDM controls a precision deflation valve (typically integrated on the manifold or within the PDM) to release cuff pressure at a controlled rate. During this process, the sensor detects the oscillation waves generated by arterial pulsation.

Data Transmission: The collected pressure oscillation signal is transmitted back to the PDM via the assembly's electrical interface, where algorithms within the PDM calculate systolic, diastolic, and mean arterial pressures.

Throughout this process, the 2031069-043 assembly ensures airtight sealing, accurate pressure transmission, and stable electrical signal transmission.

Please kindly contact us, if you are interested in GE Patient Data Module PDM NiBP Assembly with Manifold & Hose 2031069-043 Spare Parts, Thank you!

GE PDM NiBP assembly with manifold

patient monitor module with hose

NiBP assembly 2031069-043 replacement

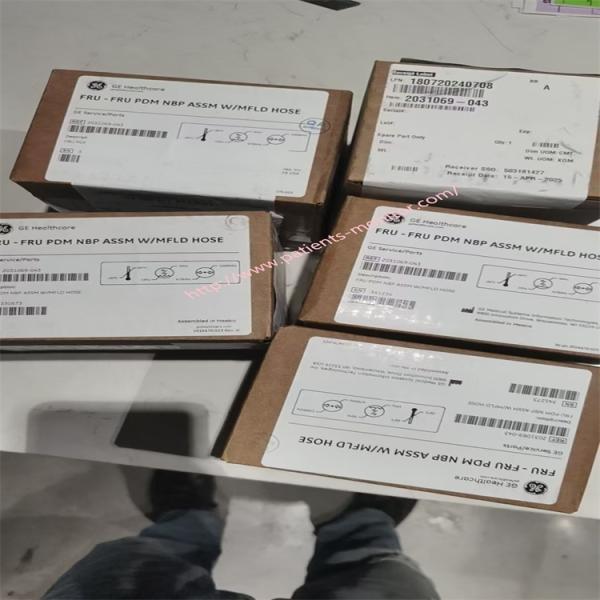

GE PDM NiBP Assembly 2031069-043 with Manifold & Hose Images
