Mindray T8 Patient Monitor Video Interface Board 6800-20-50064 6800-30-50063
Mindray T8 Patient Monitor Video Interface Board Brief Introduction
The video interface board of Mindray T8 patient monitor is compatible with Mindray T8 monitor. The monitor video interface board is a high-density interconnect circuit board that is widely used in various electronic equipment.
Feature
Medical video interface boards have higher density and higher performance. Many devices in medical equipment require the use of video interface boards, such as CT, MRI, ECG monitors, sphygmomanometers, etc. The interface board is mainly composed of connectors, binding posts, jumper caps, etc., and is used for circuit connection.
Connector: The main component of the interface board is the connector, which usually consists of a row of pinholes and a row of pins. The pinhole row is a metal strip with many small holes, each of which corresponds to a circuit signal transmission window. The pin row is a set of pins inserted on the interface board and is used for circuit signal transmission with the pin hole row. Connectors rely on the spacing accuracy of pinholes and pins to ensure the stability of circuit transmission.
Binding Post: A binding post is a basic component used to connect wires to an interface board. It usually consists of metal tubes and pins, with many neatly arranged wiring holes inserted into the interface board. The binding posts play an important role in the circuit connection process of the interface board, and the pinhole row is the target of the binding posts. Through the binding posts, the interface board can be easily connected to other circuits.
Jumper Cap: A jumper cap is usually a small piece with two or more metal posts and is used to establish a communication connection between two modules that do not have adjacent pins and need to be connected. Jumper caps are mainly used for connections between modules with separate architectures and are an important part of the interface board.
Generally speaking, the interface board is a board used for circuit connection, consisting of connectors, binding posts, jumper caps and other parts. The connector is the main component, while the binding posts and jumper caps play an important role in the connectivity and stability of the circuit.
Product Basic Parameters
| Video input interface | HDMI,VGA,AV,Color Difference |
| Display | Support HD display |
| Input resolution support | HDMI support, other interface support |
| Image quality | Selectable image quality code, brightness, contrast, saturation adjustment |
Product Details Picture
Company Profile
Unity, innovation, pragmatism and enterprising spirit are our company's unswerving pursuit. Our company cherishes every honor, continues to bring high-quality products to domestic and foreign customers, and is committed to becoming a well-known enterprise in the sales of medical devices in the industry, and exploring a standardized development path in the increasingly fierce market competition. Our company sincerely seeks partners and is willing to work hand in hand with people with lofty ideals from all walks of life to create a better future and write a new chapter in the field of medical devices.
After-Sales Service
Our products have a 90-day guarantee period and will be carefully inspected and packaged before shipping. If you have any questions or are not satisfied after receiving the goods, you can contact us.
|
|

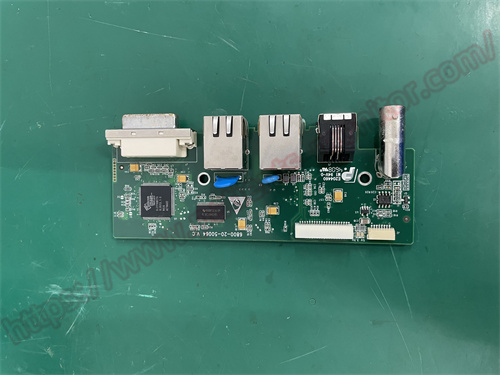

Mindray T8 Patient Monitor Video Interface Board 6800-20-50064 6800-30-50063 Patient Monitor Parts Video Interface Board Images
|
